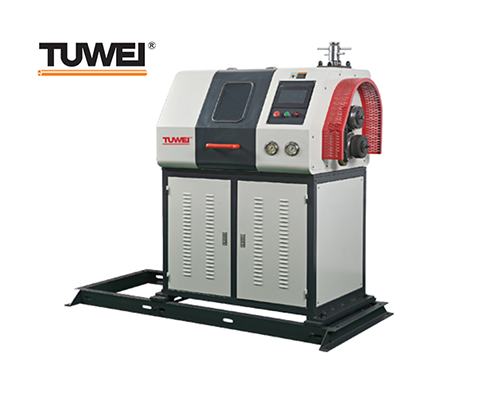

Roll Grooving Machine TWG-10A


TWG-10A automatic roll grooving machine, this innovative machine is capable of 2”-12” steel pipe and plastic-lining steel pipe groove. It modernizes and simplifies the grooving process, production accurate and repeatable grooves in a safer working environment for the operator.


Categoria de produto:

palavra-chave:

automatic roll grooving machine

Descrição do Produto

  PRODUCT INTRODUCTION



 Roll grooving machine TWG-10A is designed for automatic production line of steel pipes.

 The electrical system, hydraulic system are controlled by computer with touch screen operation.

 Achieve 100% automatic production after assembled with the steel pipe production line.

 Output RPM of spindle is variable for different steel pipes improve the work efficiency greatly.



  PRODUCT SPECIFICATIONS



 Capacity: 2“-12”( Φ 60- Φ 325) SCH40 steel pipe and SCH30 plastic lining steel pipe.

 Max. wall thickness: 10mm.

 Output RPM: 45rpm.

 G. W: 1070kgs.

 Packaging size: 180x94x180(cm).

Roll Grooving Machine TWG-10A

Standard Equipment

*For SCH40 steel pipe

Art. No.

Description

N.W(kgs)

Ref No.

03.01.15.023

Knurl wheel Φ60 – Φ89

1.9



03.01.15.024

Knurl wheel Φ100 – Φ168

4



03.01.15.025

Knurl wheel Φ219 – Φ325

10



03.01.15.020

Pinch roller Φ60 – Φ89

6.3



03.01.15.021

Pinch roller Φ100 – Φ168

4.3



03.01.16.022

Pinch roller Φ219 – Φ325

4.1



*For SCH30 plastic-lining steel pipe

03.01.015.014

Knurl wheel DN50

1.9



03.01.015.013

Knurl wheel DN65

2.4



03.01.015.012

Knurl wheel DN80

2.8



03.01.015.011

Knurl wheel DN100

4



03.01.015.010

Knurl wheel DN125

2.9



03.01.015.009

Knurl wheel DN150

6.5



03.01.015.008

Knurl wheel DN200-DN300

10



03.01.015.002

Pinch roller DN50-DN80

6.3



03.01.015.003

Pinch roller DN100

4.3



03.01.015.004

Pinch roller DN125

4.1



03.01.015.005

Pinch roller DN150

3.4



03.01.015.006

Pinch roller DN200-DN300

3.3





Motor Parameter

Phase

Voltage

Frequency

Three Phase

220/380/ 415/ 440V

50/60 Hz



  PRODUCT APPLICATION

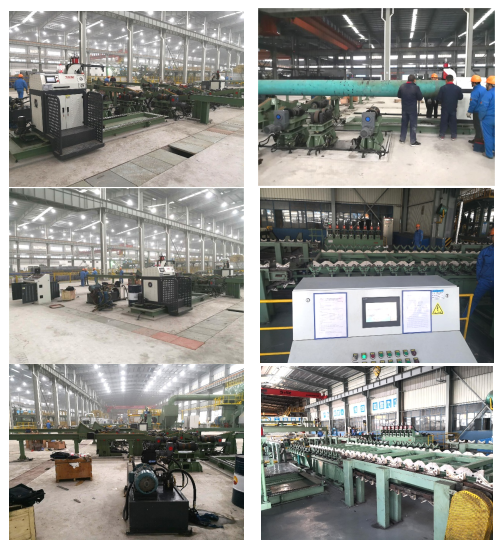

This machine can be connected with production line for pipe prefabrication, also it can be use as an automatic grooving machine on jobsite. it depends on the working invironment.
