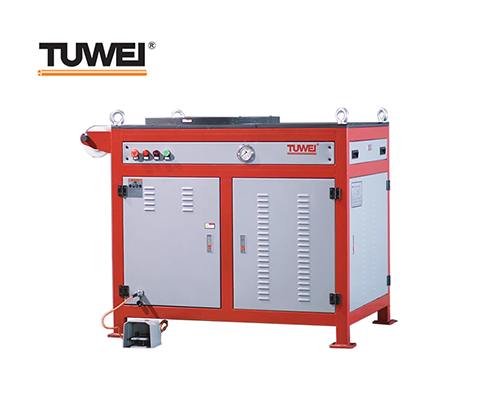

Adjusting machine TWGZ-2

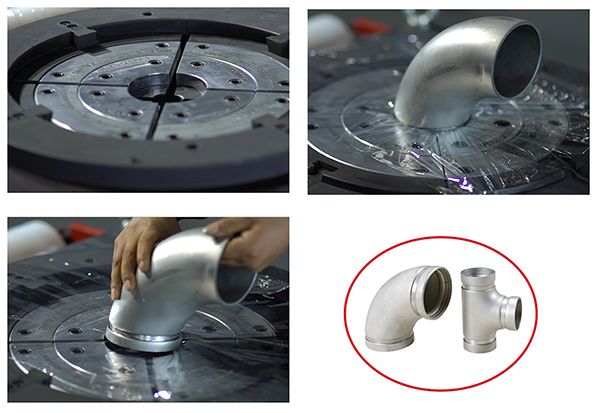

Adjusting machine TWGZ-2 is designed for adjust stainless steel and carbon steel elbows and T-fitting
Categoria de produto:
Tel：
Email：
palavra-chave:
adjusting machine
elbows and T-fitting
Descrição do Produto
PRODUCT SPECIFICATIONS
● Capacity: 1.5"-12"(Φ48 -Φ325) SCH5~SCH20 elbows and T-fittings
● Max. wall thickness: 6.35mm
●G.W: 1250 kgs
●Packaging size: 145X90X110(cm)
|
STANDARD EQUIPMENT |
|
|
Art. No. |
Description |
|
12.09.102 |
Molds Φ 323.9 |
|
12.09.103 |
Molds Φ 318.5 |
|
12.09.104 |
Molds Φ 273 |
|
12.09.105 |
Molds Φ 267.4 |
|
12.09.106 |
Molds Φ 219.1 |
|
12.09.107 |
Molds Φ 216.3 |
|
12.09.108 |
Molds Φ 168.3 |
|
12.09.109 |
Molds Φ 165.1 |
|
12.09.110 |
Molds Φ 139.7 |
|
12.09.111 |
Molds Φ 114.3 |
|
12.09.112 |
Molds Φ 88.9 |
|
12.09.113 |
Molds Φ 76.1 |
|
12.09.114 |
Molds Φ 73 |
|
12.09.115 |
Molds Φ 60.3 |
|
12.09.116 |
Molds Φ 48.3 |
|
12.09.117 |
Mold fixing ring 4"-6"
|
|
12.09.118 |
Mold fixing ting 1"-1/2"-3" |
|
MOTOR PARAMETER |
||
|
Phase |
Voltage |
Frequency |
|
Three Phase |
240/ 415V |
50/60 Hz |
